All models are built with heavy-duty, 7-gauge chipper housing and trailer construction. Each contains a double-banded belt drive and features a feed chute opening 13 x 14.5 inch. The 14 x 1 inch thick, 49 pound dynamically-balanced disc with cantilever design reduces wrapping while utilizing two reversible chipper blades. A 4.5 inch square optional discharge chute with deflector cap directs the chips and raises the discharge of chips into the trailer or back of a pickup.
All three models have a four-sided adjustable steel anvil. The PTO has a hand operated belt engagement.
(*NOTE - For Use On Tractors with PTO Horsepower Ratings From 15 hp to 28 hp)

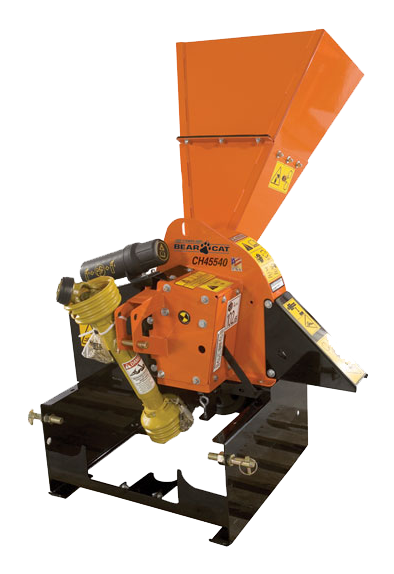

MODEL | CH45540 |
---|---|
Chipper Capacity | Up to 4.5" |
Power Source | Cat. 1, 3-Point Hitch, PTO, 540 rpm |
Input Power Range (hp) | 15-28 |
Drive | Two Double Banded |
Chipper Disc (cm) | Cantilever 36.5 x 2.5 - 49 turns at 2700 rpm |
Dimensions (cm) (LxWxH) | 101.6 x 94 x 109.2 |
Chipper Blades | 2 reversible blades with 4 sided adjustable anvil |
Feed System | Gravity/Self Feed |
Feed Sensor | N/A |
Hopper Size (cm) | 33 x 36.8 Hopper |
Shredder Opening (cm) | N/A |
Weight (kg) | 164 |
Warranty | 2 Year Consumer 1 Year Commercial |
