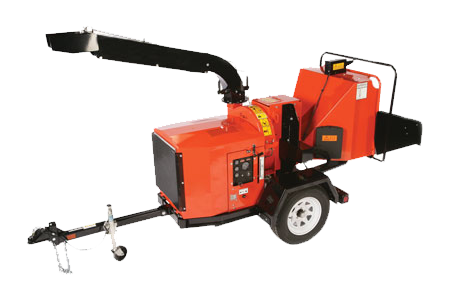

CH611DH 6" Chipper


Hook up and get chipping!

Overview

Invest in the chipper that's loaded with new standard features to make your job easier. Our new breed of chipper can handle branches up to 6 inches in diameter, with the ability to chip the toughest brush with ease. The 26 x 1 inch thick, 165 pound dynamically-balanced disc with cantilever design reduces wrapping while utilizing 4-reversible chipper blades, and an adjustable 4-sided anvil.

Features include a 6.7 inch rectangular discharge chute, and a live hydraulic feed system with a variable speed feed roller with instant reverse. Our newly developed "try again" feed system automatically retries feeding limbs. The feed sensor is factory installed and standard equipment on these 6 inch chippers. The feed roller is 15 inches in diameter, containing 10 knife blades for enhanced powerful feeding. The discharge chute extends to the end of the hitch for efficient loading and quickly rotates 360 degrees with ease. The 6 inch chipper is available with a choice of gas or diesel engines. All models have a 6.5 x 13.5 inch feed opening with a wide open feed chute measuring 36 x 35 inches.

The triple banded belt drive provides a better transfer of power. The Bear Cat 6 inch Chipper also features a telescopic tongue with 2 inch ball coupler, torsion axle suspension, adjustable jack stand with wheel and adjustable rear stabilizer. The 60 inch wide trailer is ideal for tight roads, storage and maneuverability.

Options

  • Blade Kits
CH611DH
MODELCH611DH
Chipper Capacity Up to 6"
Engine28HP Kubota Diesel
Drive BeltTriple Banded
Start Type
Chipper Disc (cm)Cantilever 66 x 2.5 - 165 turns at 1800 rpm
Dimensions (cm) (LxWxH)340.4 x 149.9 x 236.2
Chipper Blades4 reversible heat treated, machined tool steel blades with four sided adjustable anvil
Feed System
Feed Sensor
Feed Opening (cm)16.5 x 33
Hopper (cm)83.8 x 91.4
Tires (cm)P215-75R15
Wheel Base (cm)152.4
Weight (kg)1,043
Warranty2 Year Consumer
1 Year Commercial
